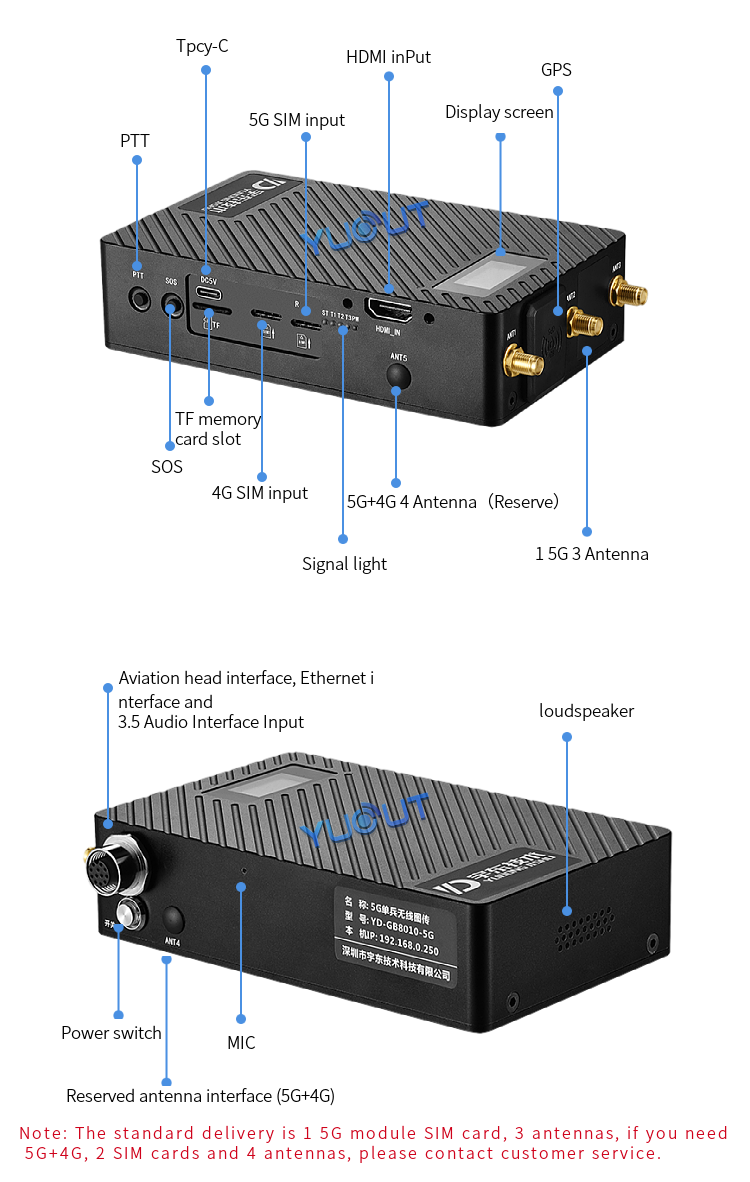

1, integrated structure design of video coding equipment, non-Android mobile phone products, embedded Linux operating system, 4G/5G full Netcom, H.264/H.265 video coding technology. Built-in camera mounted hot shoe hole.

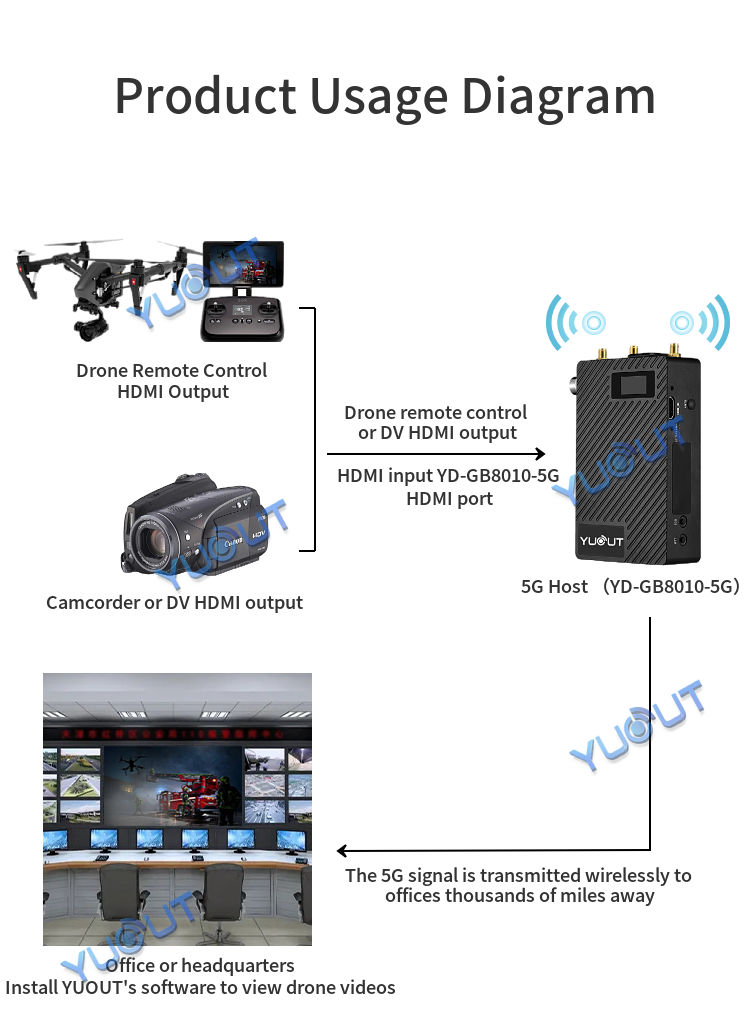

2, Support 1 HDMI HD input interface, can be connected to external DV/ camera, drone remote control and other high-definition video source input, the interface has anti-deviate design, one network port can be connected to IPC video input.

3, network interface: ≥1×5G full netcom, ≥1×4G full netcom, ≥1×WIFI, support ≥1×10/100M Ethernet network port (standard default 5G single card, 5G+4G dual card is optional) support different operators at the same time transmission, support private network, Intranet APN and VPN transmission.

4, support OLED status display, can display system working status, network status, positioning status, Bluetooth status, remaining power, storage status and other information.

5, Support two-way voice intercom, audio coding AAC, AMR, G711 a variety of options, support a variety of audio modes optional: 3.5mm headset audio, Bluetooth headset intercom, built-in MIC intercom.

6, Support H.264, H.264HP, H.265, support 1080P, 720P, D1, 4CIF, CIF, 4K (optional), frame rate 5~60 frames optional, a variety of resolutions can be adjusted.

7, device memory capacity: 4GB+64GB.

8, support remote control equipment transmission parameters, such as resolution, bit rate, frame rate, key frame interval, coding quality mode, etc

9, Support 10/100M Ethernet port, support cable network port transmission, through the network port can support satellite.

10, support intelligent dynamic rate adjustment, can automatically adjust the image frame rate and rate in the case of poor bandwidth.

11, built-in 1 hot shoe interface, DV/ camera can be installed and fixed through the hot shoe interface.

12, built-in WIFI module, you can access the wireless network through WIFI, you can also set yourself as a WIFI hotspot, support 802.11b/g/n

13, Support GB/T28181-2016 or GB/T28181-2022 standard video access specifications, support RTMP video push, can support GB 28181 and RTMP video push, support RTSP/Onvif standard stream, can access standard third-party platforms.

14, built-in lithium battery, continuous working time 8-10 hours, the equipment supports direct charging, car charging, etc., the equipment can be connected to external lithium battery, external power supply can work continuously for 24 hours.

15, support PTT button, button with anti-error design; SOS key, with SOS one-key alarm function, can force open the command center video screen, and send alarm sound prompt.

16, Support 512G TF card, support to store video images to TF card, video files using a special mechanism, can not be read and copied directly on the computer.
